Domain And Email Forwarding For WHMCS

From ModulesGarden Wiki
Jump to: navigation, search

Contents

About Domain And Email Forwarding For WHMCS

Domain & Email Forwarding For WHMCS is a module which allows your clients to create and manage forwarders directly in your client area.

The extent of management depends on the administrator, who needs to define the level of allowed domain management per each TLD.
Your client can create redirections for domains or directories as well as emails.

  • Admin Area Features:
✔ Define Per TLD:
✔ Domain Forwarders Availability
✔ Directory Forwarders Availability
✔ Domain Email Forwarders Availability - cPanel Only
✔ Single Email Forwarders Availability
✔ Nameservers
✔ Define Default Nameservers
✔ Park/Unpark Domains
✔ Check If Domains Are Parked
✔ Disable Module For Domains Assigned To Hosting
✔ Test Connection With External Server
✔ Generate API Tokens With IP Addresses Restrictions
✔ View Logs
  • Client Area Features:
✔ View/Add/Remove Domain Forwarders:
✔ Set Redirection Type:
✔ Permanent (301)
✔ Temporary (302)
✔ Replaced (303) - DirectAdmin Only
✔ Define Domain Directory
✔ Define 'www.' Redirection - cPanel Only:
✔ Only Redirect With 'www.'
✔ Redirect With Or Without 'www.'
✔ Do Not Redirect 'www.'
✔ Toggle Wild Card Redirection - cPanel Only
✔ Define Redirection URL
✔ View/Add/Remove Email Forwarders
✔ View/Add/Remove Email Domain Forwarders
  • Supported Servers:
✔ WHM/cPanel
✔ DirectAdmin
  • API Implementation:
✔ Connect Using Token
✔ Use POST And GET Methods
✔ List Client Services
✔ List/Create/Remove Domain Redirections
✔ List/Create/Remove Email Forwarders
✔ View API Actions In Logs
  • General Info:
✔ Implemented API Support
✔ Multi-Language Support
✔ Supports PHP 5.6 Up To PHP 7.2
✔ Supports WHMCS V7.2 And Later

Installation

This tutorial will show you how to successfully install and configure Domain & Email Forwarding For WHMCS.

We will guide you step by step through the whole installation and configuration process.

1. Log in to our client area and download the module.
DEF 1.png
2. In the downloaded file you will find two packages that support different PHP versions.
As presented on the screen below, the first one is dedicated to PHP 5.6 up to PHP 7.0, while the second one is aimed at PHP 7.1 up to PHP 7.2.
It does not apply to open source versions.

Note: You can check the current PHP version in your WHMCS. To do so, proceed to 'Utilities' → 'System' → 'PHP Info'.

DEF 2.png
3. Extract the downloaded file and choose the one with the right PHP version. Upload and extract the PHP file into the main WHMCS directory.

The content of PHP version files should look like this.

DEF 2 1.png
4. When you install Domain & Email Forwarding For WHMCS for the first time you have to rename 'license_RENAME.php' file.

File is located in 'modules/addons/DomainAndEamilForwarding/license_RENAME.php'. Rename it from 'license_RENAME.php' to 'license.php'.

DEF 3.png
5. In order to configure your license key, you have to edit the previously renamed 'license.php' file.

Enter your license key between quotation marks as presented on the following screen. You can find your license key in our client area → 'My Products'.

DEF 4.png
6. Now you have to activate the module in your WHMCS system.

Log in to your WHMCS admin area. Go to 'Setup' 'Addon Modules'. Afterwards, find 'Domain & Email Forward' and press 'Activate' button.

DEF 5.png
7. In the next step you need to permit access to this module.

To do so, click on 'Configure' button, tick 'Full Administrator' and press 'Save Changes'.

DEF 6.png
8. You have just successfully installed Domain & Email Forwarding For WHMCS!

You can access your module under 'Addons' 'Domain & Email Forward'.

DEF 7.png

Configuration and Management

Domain & Email Forwarding For WHMCS brings some of the management actions on domains from your external servers to your client area.

Underneath, you will find a complete guide which will show you how to take a full advantage of the module.

Dashboard

'Dashboard' of the addon includes only a short guide that is placed to help you quickly move through the configuration.

If you are already familiar with it, you may press 'Don't Show Again' button.
Then the 'Settings' page will be claimed as the home page and there you will be redirected when pressing home icon or addon name.

DEF 10.png

Settings

The module is currently compatible with two outside servers, these are cPanel and DirectAdmin.
Before you can completely work with the module, you must have an account created on the server. Domain and email redirections will be attached to this account.

Modules

Let's finally move to the addon itself. The first step of the configuration includes activating the module you want to work with.
Move to 'Domain & Email Forwarding' → 'Settings' → 'Modules' and 'Activate' the module you need to connect to the external server. You may activate cPanel and DirectAdmin modules.
For presentation purposes, we will show how to properly activate and then configure the cPanel module. DirectAdmin works alike.
DEF 11.png
Confirm the action to continue.
DEF 12.png
When a module is active, you must configure the connection with its server. Press 'Configure' to do so.
DEF 14.png
Here, you have to provide all the necessary details to successfully connect to the server:
  • Host or IP address
  • Port - this field is not obligatory, if you leave it empty a default cPanel port will be used to connect
  • WHM username and password
  • SSl Connection
  • Account - name of the previously created account on your cPanel server with no or a very high limit.
    All redirections will be assigned to this account.

Press ' Test Connection' button to make sure everything is working properly.

DEF 15.png
Finally, save the configuration.
DEF 16.png
You may deactivate the used module at any moment. Simply press the button marked on the screen.
DEF 13.png

General

Once you have active and properly configured connection with the outside server of your cPanel, you may move to the general settings of the module.

You can find them under 'Settings' → 'General'.

DEF 17.png
There are three sections: 'General', 'Domains' and 'Nameservers'. We will start with 'Nameservers'.
DEF 18.png
'Nameservers' section includes default entries that will be used in case domain nameservers are not provided.
Prepare a list of your standard nameservers here.
DEF 18 1.png
Under 'Domains' there is a complete list of allowed in your WHMCS TLDs.
Press pencil icon under 'Action' to set up the forwarding options for each of the TLDs.
DEF 18 2.png
Use the mass edit button to set configuration to all or selected domains with one action only.
DEF 32.png
'General' subsection allows several options per TLD, such as:
  • domain forwarding
  • directory forwarding (only if domain forwarding is allowed)
  • email forwarding

Select which module it should be applied to (if more than one is active).

DEF 19.png
Finally, you may provide nameservers per single TLD. If you do not do it, the default nameservers will be used.
DEF 20.png
Prepare configuration for each of the TLDs according to your needs.
DEF 20 1.png
In the last section, 'General', you may decide whether you wish to hide the 'Domain Management' box in the client area if the domain is used in a hosting.
DEF 20 2.png

Domains

Under 'Domains' tab, there are all existing domains listed.
DEF 29.png
Here, the administrator may check the current status of the domain.
Just press the marked button and a notification will appear with information whether the domain is parked or not.
DEF 30.png
Use the action buttons to either park(1) or unpark(2) the domain.
DEF 31.png

API

'API' section provides an option to generate API tokens. At the top of the section, you can find a direct URL to the API.
Press 'Add New' to generate a token that will be necessary for authentication purposes when working work with the API.

See section API Commands to learn more.

DEF 21 1.png
Provide a custom name, press 'Generate' to get the token and enter IP addresses that will be allowed for this single token.
You may type in each in a different line or use a comma to separate them. Press 'Save' when ready.
DEF 21 2.png
All generated tokens are available on the list, you may edit them (change the list of allowed IP addresses) or delete when no longer used.
DEF 21 3.png

Logs

Under 'Logs' tab you will find all log entries.

There are details on any successful or failed action in the module. Check it out any time you need to find some details on the actions taken.
Press 'Delete All Entries ' to clear all logs or delete single ones.

DEF 21.png

Documentation

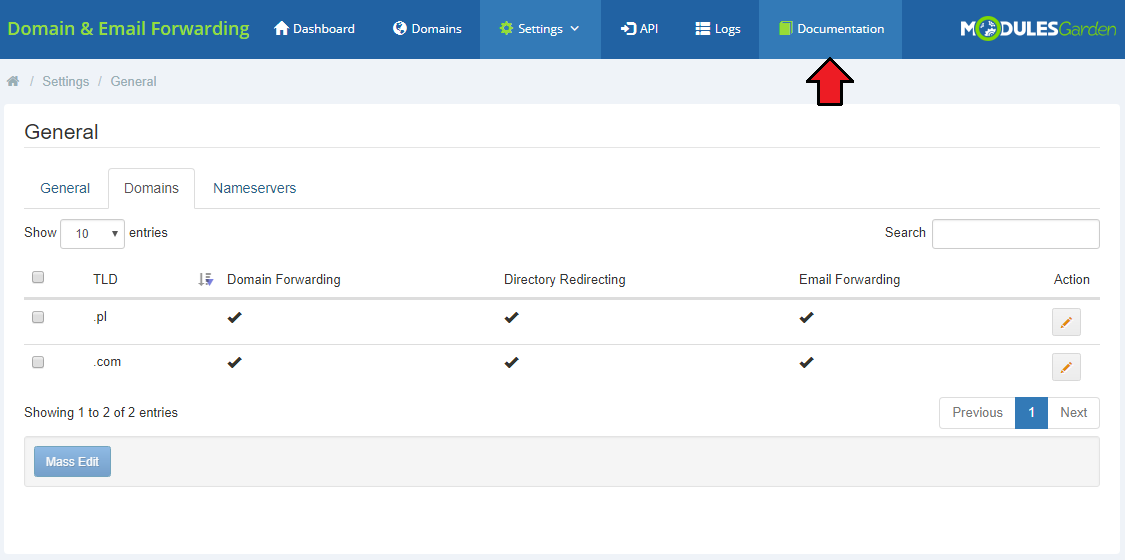

The last position in your navigation menu, when pressed, redirects to the article you are currently reading.
DEF 22.png

Client Area

Domain & Email Forwarding For WHMCS module gives your clients the possibility to perform some actions typical to the ones that are performed directly in cPanel.
If you have allowed the options to your clients per used by them TLD, they now can see a new management box when they move to their domain details.
DEF 23.png

Domain Forwarders

Under 'Domain Forwarders' clients may now specify new forwarders per domain or directory.
DEF 24.png
To add a new domain forwarder:
  • select its type: 'Permanent' or 'Temporary'
  • provide directory forward - if allowed
  • provide redirect URL to redirect domain
  • select 'www' redirection type
DEF 25.png

Email Forwarders

The second option 'Email Forwarders' allows clients to forward email from one domain to another one.
You may also provide a new destination for a specific email account.
DEF 26.png

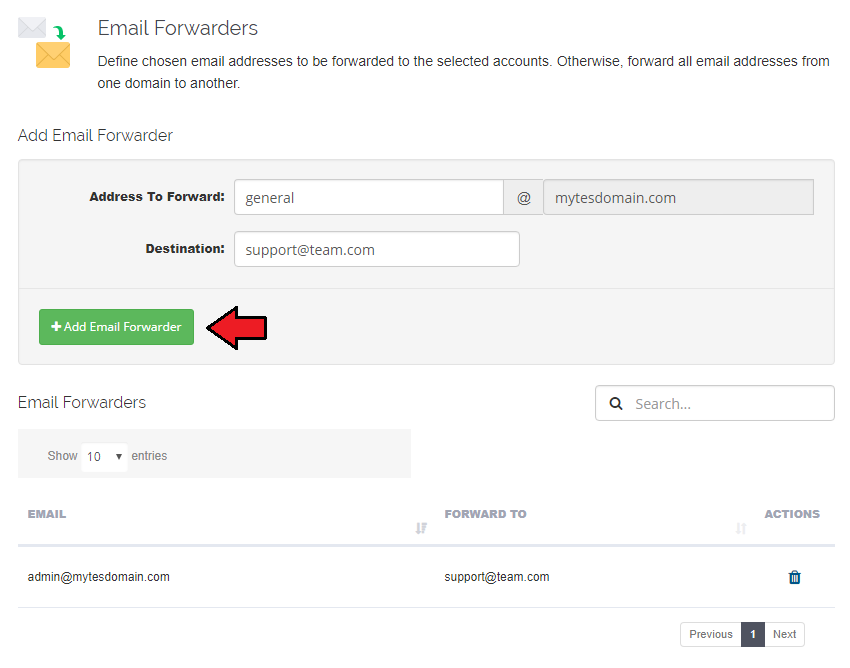

In order to add an email forwarder, please specify firstly address you want to forward and then the final destination.
DEF 27.png
To add a new email forwarder simply type in the final domain to redirect email to.
To delete an email forwarder simply press button under 'Actions' column.

Note: Please keep in mind that this option is available only for cPanel module.

DEF 28.png

API Commands

Authorization

1. Authentication
Send in headers a field called 'Token' with a value previously set in the module in the API tab.

Listing WHMCS Services

1. Listing all users services:
 GET user/{WHMCS USER ID}/services

Domain Redirections

1. Listing redirection for a specific service:
 GET /services/{WHMCS SERVICE ID}/domainsRedirects
2. Adding redirection to a specific service:
 POST /services/{WHMCS SERVICE ID}/domainsRedirects
POST parameters:
• Type:
° CPANEL: "temp" for temporary redirection or "permanent" for permanent redirection
° DIRECT ADMIN: 301 for permanent redirection, 302 for temporary redirection, 303 for replaced redirection
• url - just where to redirect the domain
• rdww - takes one of the following parameters:
° "0" - Redirect With Or Without 'www'
° "1" - Do Not Redirect 'www'
° "2" - Only Redirect With 'www'
• wildcard - takes one of the following parameters:
° "0" to not wildcard redirect
° "1" to wildcard redirect
• src - directory in which the redirection will be placed
3. Removing redirection:
 POST /services/{WHMCS SERVICE ID}/domainsRedirects/delete
POST parameters:
• sourceurl - domain source URL which you want to remove

Email Forwarders

1. Listing email forwarders for a specific service:
 GET /services/{WHMCS SERVICE ID}/emailsRedirects
2. Adding email forwarder to a specific service:
 POST /services/{WHMCS SERVICE ID}/emailsRedirects
POST parameters:
• html_forward - email which is wanted to be redirected. There should be passed only the first part of the email eg. "yourmail" not "[email protected]".
• dest - email destination address. A whole email address must be passed here.
3. Removing an email forwarder:
 POST  /services/{WHMCS SERVICE ID}/emailsRedirects/delete
POST parameters:
• html_forward - email html forward
• dest - email destination address

Tips

1. If you want to quickly set up the configuration for all your TLDs, then you can use the 'Mass Edit' option to shorten the process.
2. As this module supports templates system, any changes made in the module's templates files will be saved after the upgrade process.
3. In case a domain is already managed by DNS Manager module, which means that it has already a zone created, that domain will not be available in the client area domain management section.
In the admin area it will be visible on the list of the domains, yet it will be marked as on the below screen.
DEF 33.png

Update Instructions

Essential guidance through the process of updating the module is offered here.

Keep in mind there is a quick and easy option in our client area that will let you upgrade the license of your module to an open source version at any time - and at a lower price!
To take advantage of it, simply use the License Upgrade button located on the product's page and a discounted invoice will be generated automatically.

Common Problems

1. When you have problems with connection, check whether your SELinux or firewall does not block ports.
